Product Description:
The JA series floating joints possess several key properties, including:
- Installation form
- Suitable cylinder diameter
- Thread specification
- Maximum tensile and compressive force
- Allowable eccentricity
- Swing angle
- Operating temperature range
These features are essential for various industrial automation applications and facilitate the connection of robotic arms, material handling systems, precision positioning equipment, and assembly line automation.

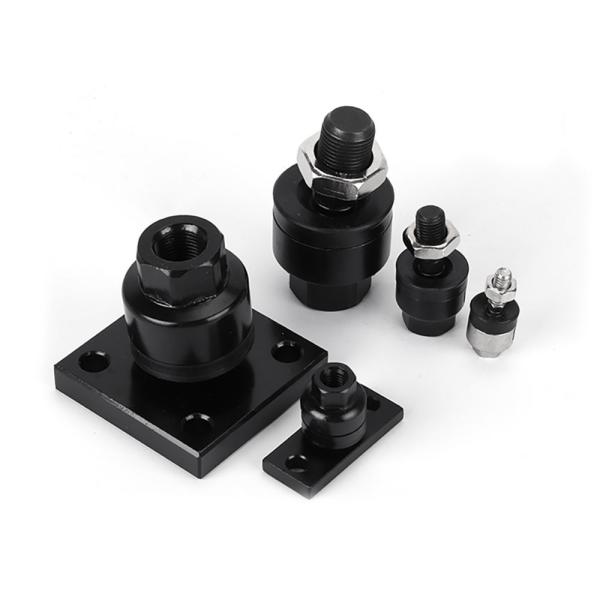

The JA series floating joint adopts a flange type installation form that allows easy installation and maintenance. It is suitable for use cases that require frequent disassembly and maintenance.
The models have different suitable cylinder diameters. For example, JAF80-22-150 is suitable for a cylinder diameter of 80mm, while JAF100-27-150 is suitable for a cylinder diameter of 100mm.
The thread specification varies by model. For instance, JAF80-22-150 has M22X1.5 thread specification, while JAF100-27-150 has M27X1.5 12 thread specification.
The maximum tensile strength also varies by model. For example, JAF80-22-150 has a maximum tensile strength of 18000N, while JAF100-27-150 has a maximum tensile strength of 28000N.
The allowable eccentricity is another vital feature that distinguishes the different models. JAF80-22-150 has an allowable eccentricity of 1.25mm, and JAF100-27-150 has an allowable eccentricity of 2mm.
The swing angle for all models is ± 5°.
The operating temperature range for all models is between -5 and 60℃.
The JA series floating joints' design can compensate for eccentricity and parallelism issues resulting from manufacturing or installation errors. This improves the stability and lifespan of the system, making it an excellent solution for various industrial automation needs.
Technical Parameters:
| Product Type | Simple |
| Brand | SMC |
| Applicable Cylinder Nominal Thread | M40x1.5 |
| Type | Floating Joints |
| Applicable Cylinder | Air Cylinder / Hydraulic Cylinders |
| Unit Of Measure | EA |
SMC with flange floating joint, SMC with flange floating joint, SMC with flange floating joint
Applications:
These valves have a minimum order quantity of 1 and are available at a negotiable price. The packaging details for these valves include a carton or as per the clients' requirements. The delivery time for these valves is 1-7 work days after payment. The payment terms include T/T, Western Union, and Paypal. The supply ability for these valves is 5000 pieces per month.
The SMC Solenoid Valves are available in different types, including SMC JAF floating joint, SMC JAF with flange floating joint, and SMC JAF simple floating joint. These valves are compatible with cylinders with a nominal thread of M27 × 1.5.
The SMC JAF floating joint is used in various applications, including hydraulic systems, pneumatic systems, and vacuum systems. These valves are designed to provide a secure connection between the cylinder and the piping system. They are easy to install and maintain, making them a popular choice among industrial professionals.
The SMC JAF with flange floating joint is another popular option. These valves have a flanged connection, making them ideal for applications where a secure connection is required. These valves are designed to withstand high pressures and temperatures, making them suitable for use in harsh environments.
The SMC JAF simple floating joint is another option for those looking for a simple and reliable valve. These valves are easy to install and maintain, making them a popular choice for various industrial applications.
In conclusion, the SMC Solenoid Valves are an excellent choice for those looking for a reliable and high-quality valve. These valves are manufactured by SMC, a trusted brand known for producing high-quality products in China. They have CE certification, ensuring that they meet the highest quality standards. With different types to choose from, such as SMC JAF floating joint, SMC JAF with flange floating joint, and SMC JAF simple floating joint, these valves are suitable for various industrial applications.
Packing and Shipping:
Product Packaging:
- Each solenoid valve is packed in a protective plastic bag.
- The valves are then placed in a cardboard box with appropriate cushioning to prevent damage during shipping.
- The cardboard boxes are labeled with the product name, model number, and quantity.
Shipping:
- Shipping is done through trusted and reliable courier services.
- The packages are tracked and insured for safe delivery.
- Delivery times and shipping costs vary based on the destination and shipping method selected.
