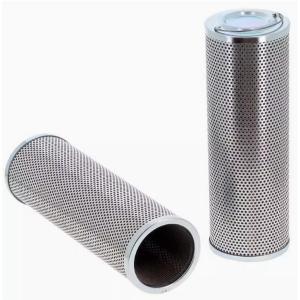

HC6200FCT4Z Hydraulic Filter Element For Oil Emulsion And General Hydraulic Oil

Product Description:

(1) The PALL filter element should be installed at the suction port of the pump:

A surface type oil filter is usually installed on the suction path of the pump to filter out larger impurities and particles to protect the hydraulic pump. In addition, the filtering capacity of the oil filter should be more than twice the pump flow rate, and the pressure loss should be less than 0.02 MPa.

(2) The PALL filter element is installed on the outlet oil circuit of the pump:

The purpose of installing an oil filter here is to filter out pollutants that may enter components such as valves. Its filtration accuracy should be 10-15 μ m, and it should be able to withstand the working pressure and impact pressure on the oil circuit, with a pressure drop of less than 0.35 MPa. At the same time, it should be installed Safety valve to prevent oil filter blockage.

(3) The PALL filter element is installed on the system's return oil line: this installation serves as an indirect filter. Usually, a back pressure valve is installed in parallel with the filter. When the filter becomes clogged and reaches a certain pressure value, the back pressure valve opens.

(4) The PALL filter element is installed on the system branch oil circuit.

(5) PALL filter element separate filtration system: Large hydraulic systems can be equipped with a dedicated hydraulic pump and oil filter to form an independent filtration circuit. In addition to the oil filter required for the entire system, a dedicated fine oil filter is often installed in front of some important components (such as servo valves, precision throttle valves, etc.) to ensure their normal operation in the PALL filter hydraulic system.

Features:

The PALL filter element possesses several characteristics that make it highly efficient and economical. First and foremost, the filter element has an exceptional hydrophobicity that prevents moisture and other liquids from entering the system, thereby protecting equipment from moisture damage. Additionally, the filter element utilizes high-efficiency filter materials such as to provide a larger filtration area, which allows it to efficiently filter impurities in gases or liquids.

The design of the PALL filter element also takes into account good oil permeability, which enables the filter element to maintain stable filtration performance even under high flow conditions. The filter element has a simple structural design that makes it easy to install and replace, thereby reducing maintenance time and costs.

The pore size distribution of the filter element is uniform and dense, which can effectively intercept small particles and ensure filtration accuracy. In addition, the bridging phenomenon of particles in the filter pores enables the filter element to block particles smaller than the pore size, achieving high filtration efficiency of over 98%.

The filter material boasts high cleanliness, ensuring the purity of the filtered liquid. It is also highly resistant to corrosion by chemical reagents and organic solvents such as acid and alkali due to its good chemical compatibility. The filter element can maintain its excellent physical strength by withstanding a pressure difference of 0.4Mpa without deformation.

The PALL filter element has strong cleaning ability, long service life, low long-term usage cost, and good economic benefits.

Applications:

Petrochemicals are essential components that are separated and recovered during refining and chemical production processes. These intermediate products require purification through various methods such as liquid purification, magnetic tape purification, and filtration of oil field well water and natural gas to remove particles.

The purification and uniform filtration of the polyester melt during the wire drawing process is critical to the textile industry. Protective filtration of air compressors and removal of oil and water from compressed gas are also essential processes in the textile manufacturing industry.

Reverse osmosis water and deionized water are critical components for the electronics and pharmaceutical industries. The pretreatment and filtration of these waters are essential for their production and processing, as well as the pre-treatment and filtration of cleaning solutions and glucose.

The purification of oil in lubrication systems, speed control systems, bypass control systems of gas turbines and boilers, as well as the purification of feed pumps, fans, and dust removal systems are key components of thermal and nuclear power production.

Proper lubrication systems and compressed air purification are vital to paper-making machinery, mining machinery, injection molding machines, and large precision machinery. Additionally, dust recovery and filtration are important processes for tobacco processing equipment and spraying equipment.

Filtration of lubricating oil and engine oil for railway internal combustion engines and generators is necessary for both performance and longevity.

Air filters, oil filters, fuel filters, various hydraulic oil filters, diesel filters, and water filters are critical components for internal combustion engines, construction machinery, ships, and heavy-duty vehicles. These filtration systems ensure the longevity and overall performance of the machinery.

Support and Services:

Our technical support team is available to provide assistance with installation, troubleshooting, and maintenance of the Hydraulic Filter Element. We also offer a range of services, including filter element testing, filter element cleaning, and filter element replacement. Our team of experts can help you select the right filter element for your application and optimize its performance for maximum efficiency and longevity.

Packing and Shipping:

Product Packaging:

The Hydraulic Filter Element product will be securely packaged in a cardboard box with protective foam padding to ensure safe transport and delivery to the customer.

Shipping:

The product will be shipped via standard ground shipping through our trusted carrier partners. Shipping times may vary depending on the customer's location and shipping option selected at checkout.
